Description

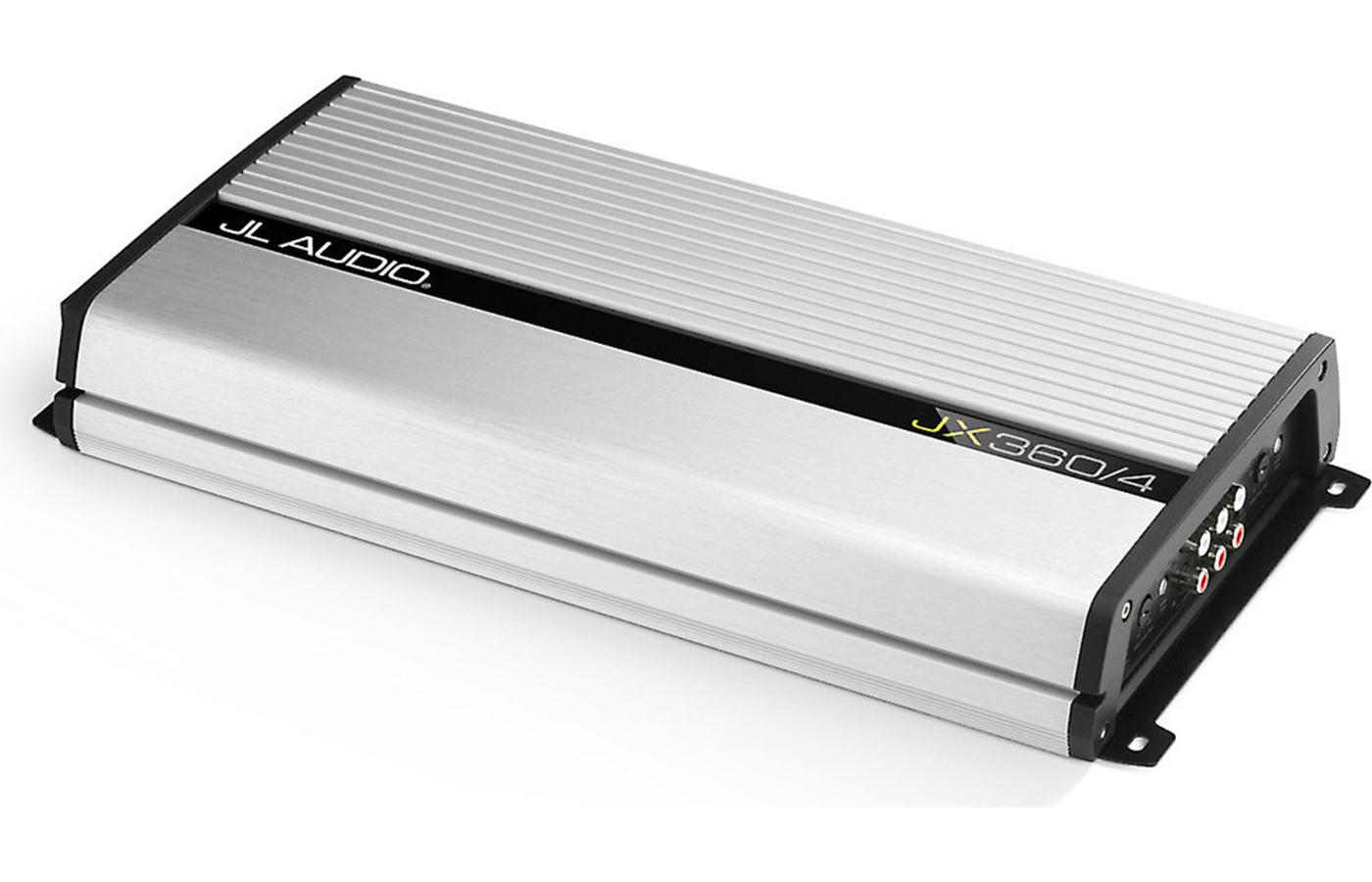

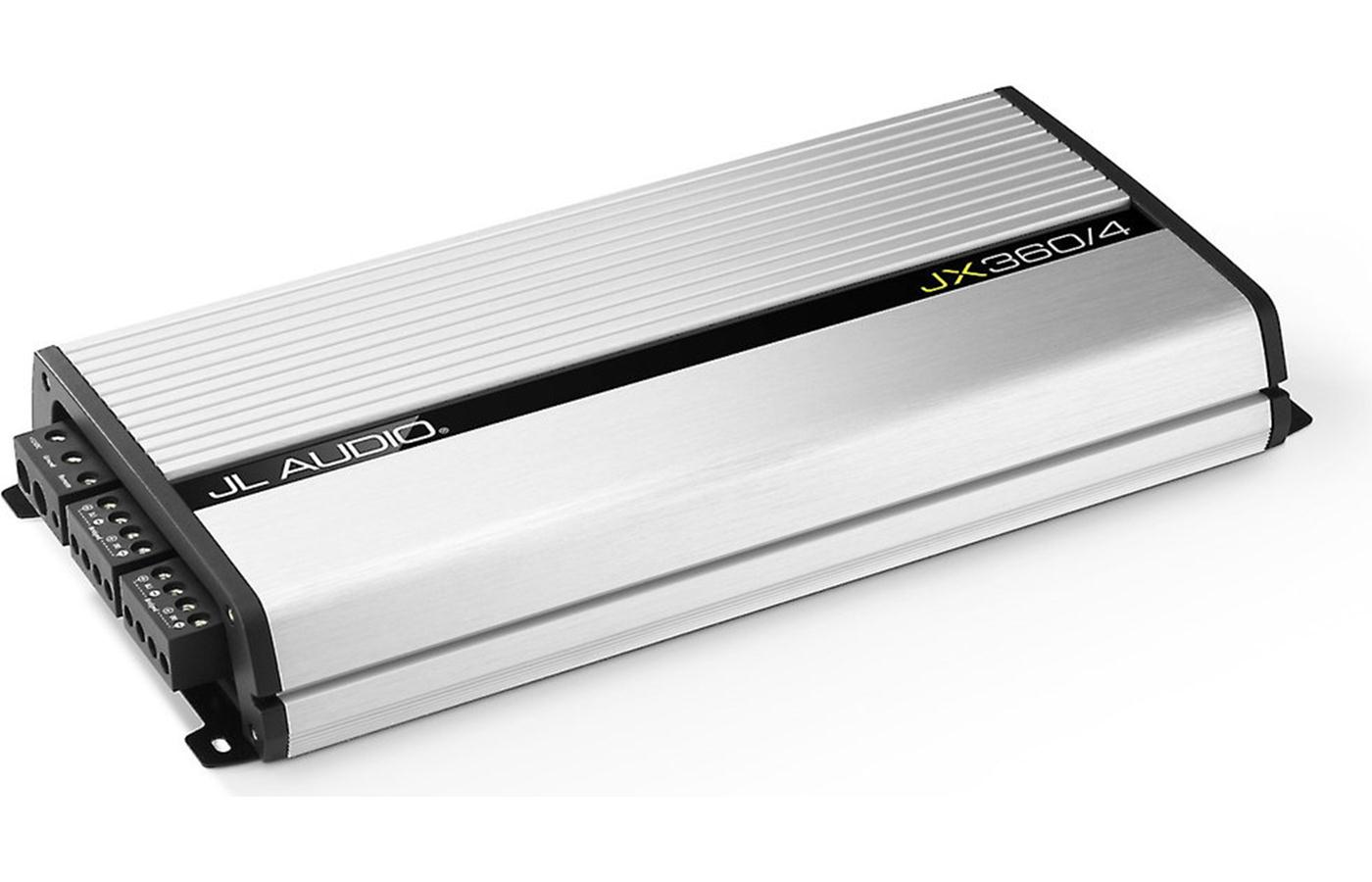

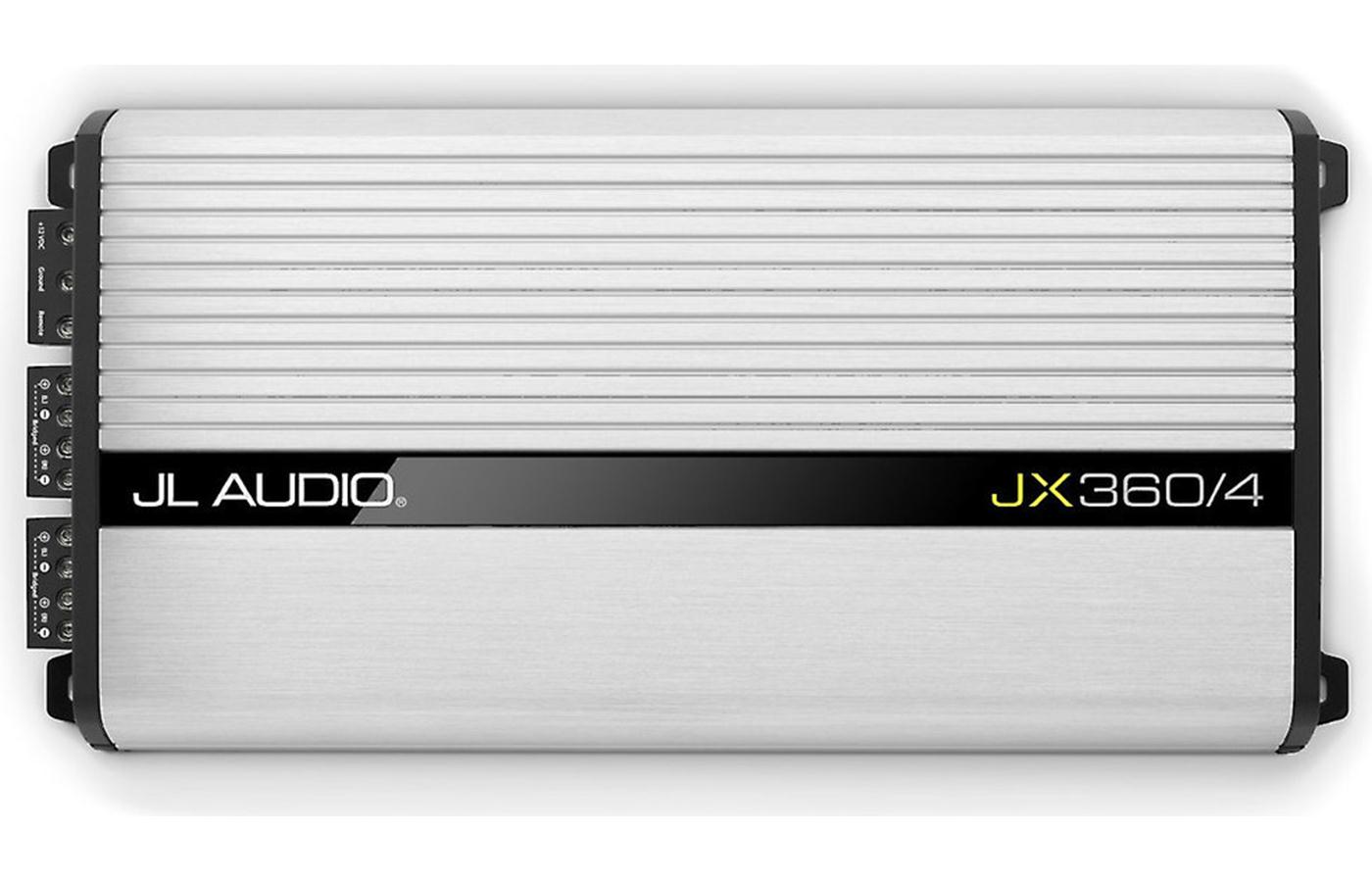

You know you’re holding a serious piece of sound equipment when you feel the heft of a JX amp. JL Audio designed these amplifiers with sturdy, high-grade parts that ensure excellent heat management, provide high current flow, and deliver stable performance in almost any situation. You won’t find blinking lights or meters on the outside of these amps, but you will find oversized output transistors and rugged MOSFET power supplies inside. The sleek, high-mass aluminum heatsink keeps things cool enough to virtually eliminate thermal shut-downs.

-4-channel car amplifier
-70 watts RMS x 4 at 4 ohms (90 watts RMS x 4 at 2 ohms)
-180 watts RMS x 2 at 4 ohms
-Class AB amplifier design
-MOSFET switching power supply
-frequency response: 20-20K Hz
-variable high- and low-pass filter (50-200 Hz, 12 dB/octave)

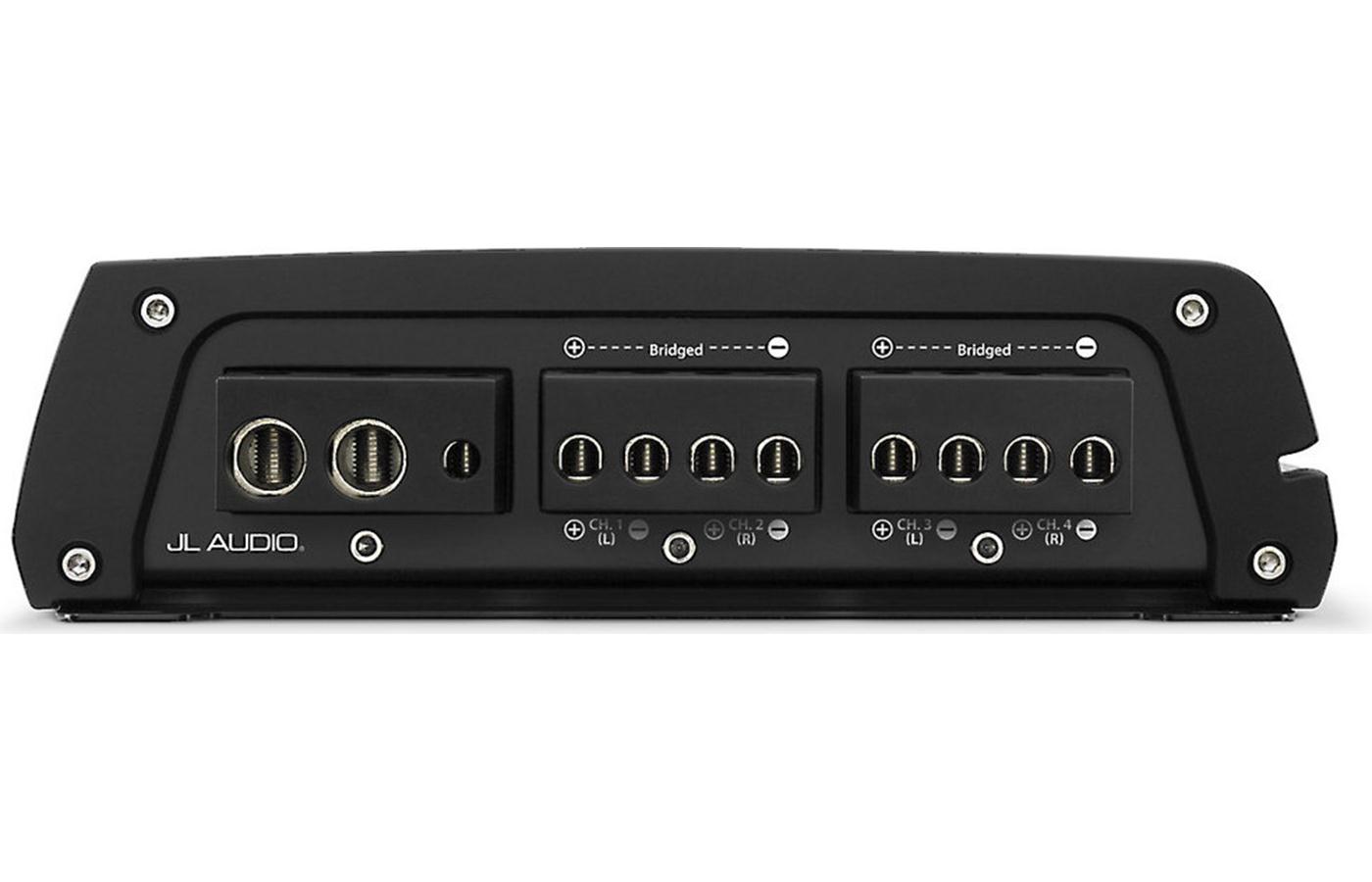

-preamp inputs and outputs
-speaker-level inputs
-4-gauge power and ground leads and a 50-amp fuse recommended — wiring and hardware not included with amplifier
-no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
-16″W x 2-3/16″H x 7-11/16″D
