Description

The crossover filters on the front and rear channels allow you to adjust the sound to your setup. The front channels use a variable high-pass filter to keep the bass away from your full-range speakers, so they play cleanly. The variable rear crossover can be set to high- or low-pass depending on whether you’re running a subwoofer or full-range speakers on the rear amp channels. It also features a very wide range of crossover points, that’ll be useful for tuning midrange and midbass speakers.

-4-channel car amplifier
-75 watts RMS x 4 at 4 ohms (100 watts RMS x 4 at 2 ohms)
-200 watts RMS x 2 bridged at 4 ohms (4-ohm stable in bridged mode)
-frequency response: 10-25,000 Hz
-Class AB amp technology

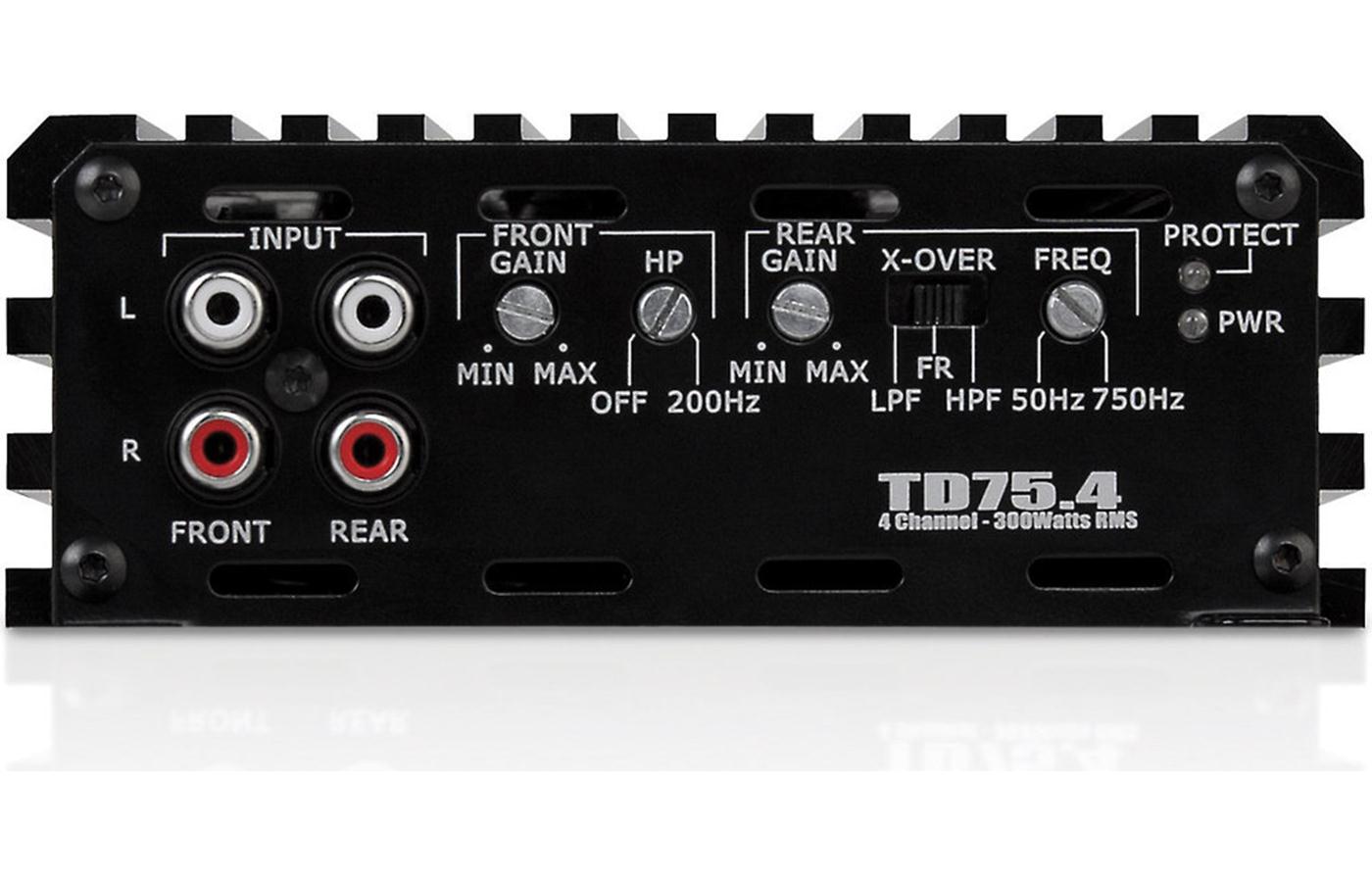

-variable high-pass filter on front channels (10-200 Hz, 12 dB/octave)
-variable high- and low-pass filters on rear channels (50-750 Hz, 12 dB/octave)
-preamp inputs
-8-gauge power and ground leads and a 60-amp fuse recommended — wiring and hardware not included with amplifier
-no onboard fuses — when installing multiple amps in a system, an additional 60-amp in-line fuse between the distribution block and the amplifier is recommended
-12-7/8″W x 2-3/16″H x 5-9/16″D
